Integrating Sphere technology is a critical component in color spectrophotometers, especially when measuring complex surfaces like textured, uneven, or glossy materials. This technology utilizes a hollow spherical structure coated with a reflective material, such as barium sulfate, to diffuse light uniformly within its interior.
When light is directed into the integrating sphere, it bounces around multiple times before reaching the sample. This scattered light ensures that the sample is illuminated from all directions, minimizing the impact of surface irregularities. As a result, the spectrophotometer can capture the true color of the sample, providing more accurate and consistent measurements compared to traditional systems.

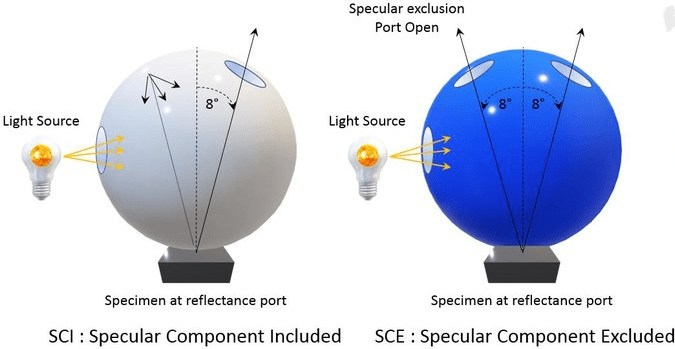

Integrating Spheres are particularly useful in d/8 spectrophotometers, where the “d” stands for diffuse illumination and “8” denotes an 8-degree viewing angle. This configuration allows for more comprehensive color analysis and is widely preferred for measuring glossy, reflective, or translucent materials.
In summary, Integrating Sphere technology enhances the versatility of spectrophotometers by offering precise color measurement across a range of challenging surfaces, making it an indispensable tool in industries like automotive, paints, textiles, and plastics etc.
Key Differences between Sphere (d/8) and Without Sphere (45/0) Spectrophotometers:
1. Optical Geometry:
Without Integrating Sphere (45/0): Measures color by capturing light at a specific angle, making it sensitive to surface texture and gloss. It can distinguish how light interacts with a surface, which affects the color measurement if the material has glossy characteristics.
With Integrating Sphere (d/8): Uses diffused light to illuminate the sample uniformly from all directions, minimizing the impact of surface properties like texture or gloss.
2. Gloss Sensitivity:
Without Sphere: Captures gloss and surface variations, leading to inconsistent results for glossy, reflective, or textured materials.
With Sphere: Suppresses gloss by using diffuse illumination, ensuring the true color is measured, regardless of surface variations.
3. Applications:
Without Sphere: Ideal for applications where surface appearance is crucial, like printed materials, textiles, and certain coatings.
With Sphere: Best for complex surfaces like plastics, metals, and highly reflective or glossy samples.
Thus, choosing between these technologies depends on the nature of the material and the type of color evaluation needed.
